Indoor or outdoorResidential, community & commercial
Quote preparation video
Get a faster, more accurate quote.
This walkthrough shows how to measure station height, photograph the full installation area, and identify the details that affect fit and installation.
Measure from the lower floor to the upper landing.
Take wide photos of the full stairs, landing, and approach.
Show walls, railings, gates, obstacles, and nearby power.
Note the entry path, indoor or outdoor location, and who will use the lift.
Measure from the lower floor to the upper landing. The rise determines the base configuration; platform, gates, controls, finish, and mounting are then built around the site.
Short-rise solution
Under 44 inches
A freestanding armed-base configuration for entry steps, low porches, garages, and smaller level changes.
Fully assembled through 34 inches
Partially assembled from 35 to 43 inches
Many prepared-site installations can be completed quickly
$4,992-$5,742
Product range shown by the current quote builder. Shipping, site work, and selected add-ons are separate.

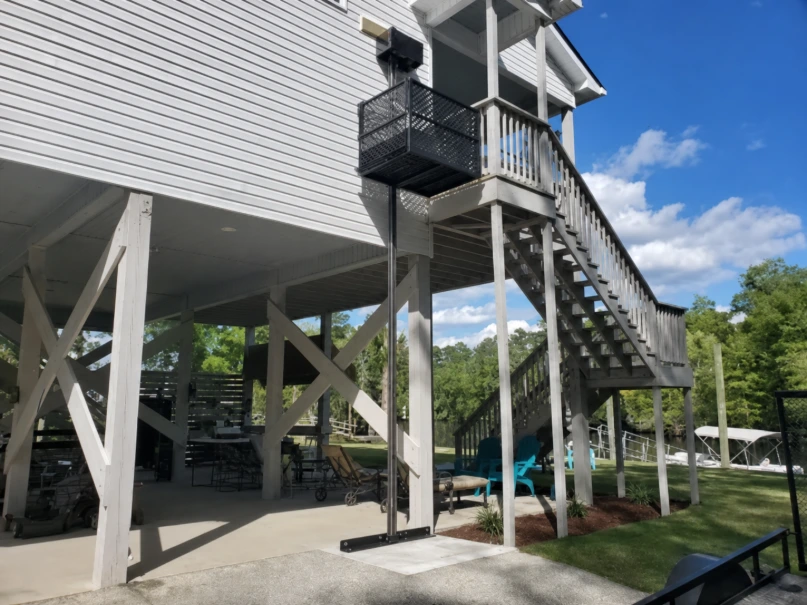

Higher landings
44 inches to 20 feet
A base-bracket configuration secured to the home, deck, or landing for taller travel.
Configured for the exact station height
Platforms available up to 44 by 70 inches
Straight-through or turning entry layouts
$5,999-$7,973
Product range varies by height and package. Shipping, site work, and selected add-ons are separate.
Core specifications
Straightforward by design.
Travel height
3 inches through 20 feet
Platform sizes
24 by 24 inches up to 44 by 70 inches
Standard platform
36 by 48 inches; approximately 34 by 48 inches usable
Capacity
750 lb standard lifting capacity
Power
110V outlet on a 20-amp circuit; GFCI outdoors
Entry
Straight-through, turning, and site-specific layouts
Controls
Wireless standard; tethered optional
Sound
About 73 dB standard; about 64 dB with soundproofing kit
Platform size & travel path
Choose how you enter and exit.
The standard platform is 36 inches deep × 48 inches wide. That size easily accommodates a wheelchair traveling straight through. We describe every layout from the rider’s view while facing the column.
VIEW FROM ABOVE
Column / back = the wall or upper landing sideLeft and right are the straight pass-through sides. The front is directly opposite the column.
Straight-through
Enter on the left and exit on the right—or travel in the opposite direction.
90-degree turn
Use the left plus front—or the right plus front—to create a turning travel path.
Same-side entry & exit
Use one left, right, or front gate or opening and return through that same side.
Gates and openings: Up to two gates are included as standard. Each of the three travel sides—left, right, and front—can be specified as a gate or an opening, including layouts with no platform gates where the final project configuration allows.
A practical starting size
36 deep × 48 wideStandard wheelchair platform for a straight-through travel path.
36 deep × 60 wideRecommended starting point for a wheelchair plus a caregiver traveling straight through.
42–44 deep × 60–70 wideStarting range when a wheelchair and caregiver must make a 90-degree turn. Maximum platform: 44 deep × 70 wide.
All dimensions are inches and listed as depth × width. Final sizing should be confirmed around the actual wheelchair, caregiver position, approach, gate swing, landing, and site conditions.
Compare lift applications, travel heights, platform and gate configurations, pricing, financing, and the photos and measurements that help us quote accurately.
